Energy Series

Features

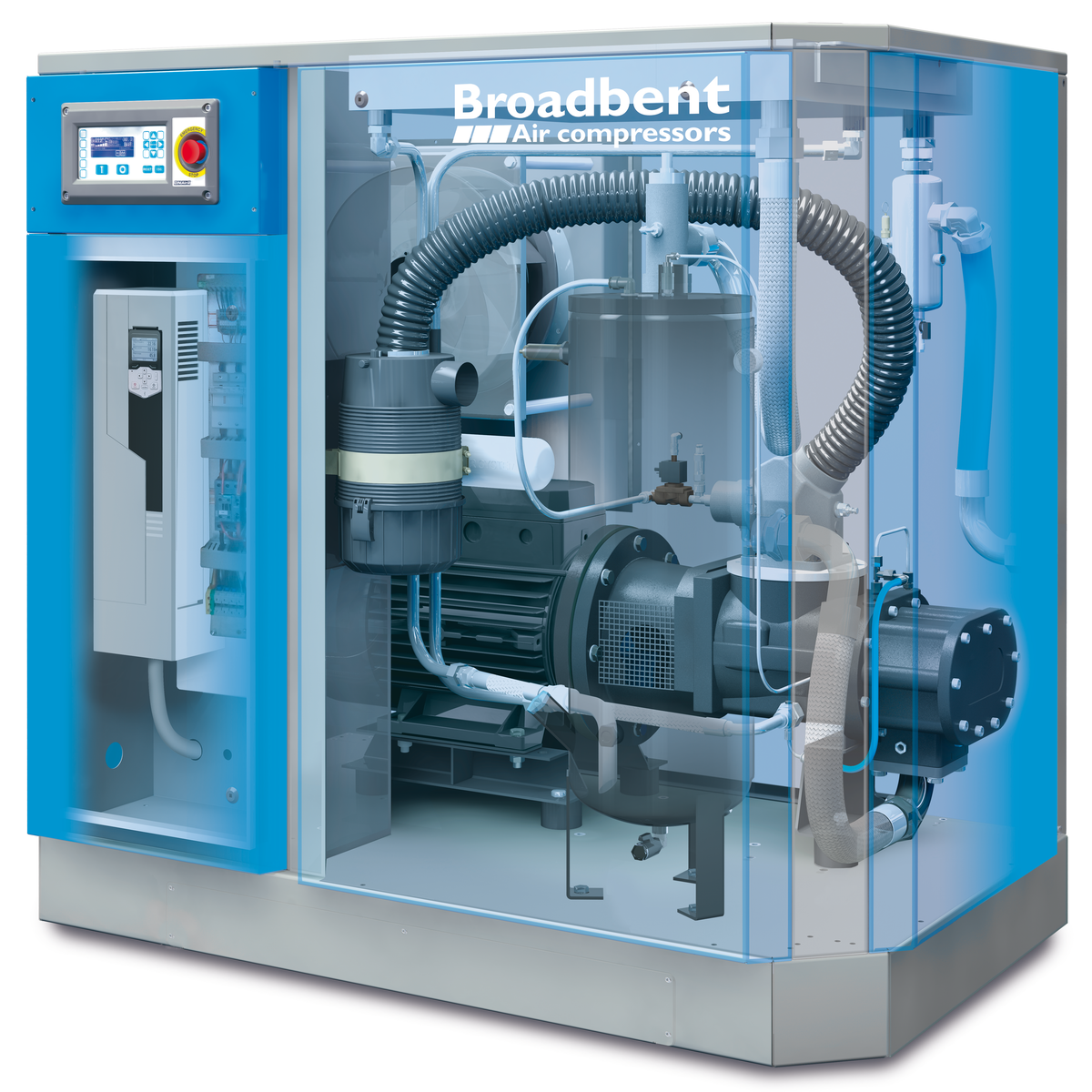

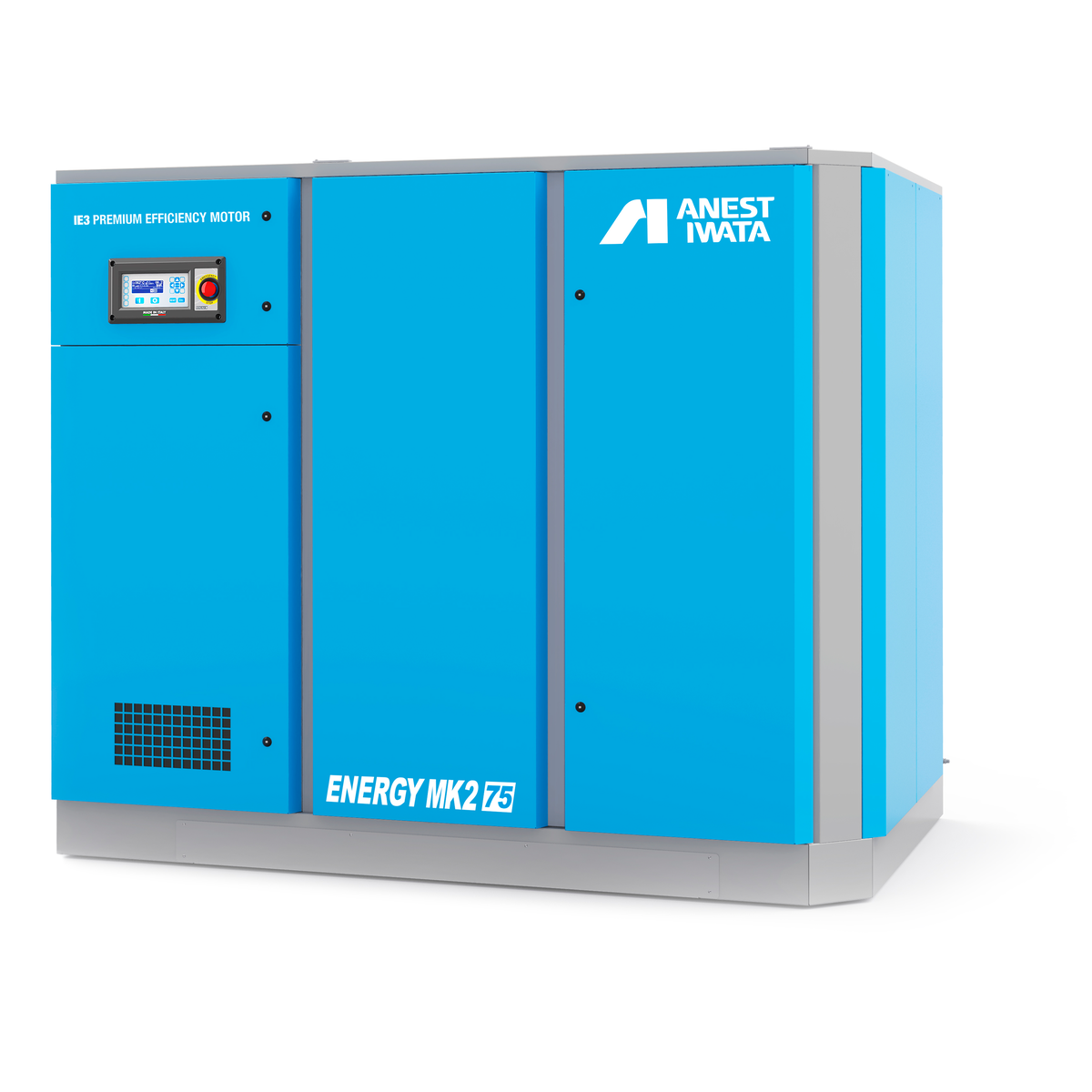

ENERGY MK2 and ENERGY variable speed screw compressors allow for power savings on average between 30%-40% over conventional controlled compressors. ENERGY Series allows for an air supply with minimal peaks, in doing so supplying only the air required for production minimising service costs and operating costs. Designed to operate in the harshest working conditions 24 hours per day. The controller is able to control up to 4 units from one common control panel.  All ENERGY Series is equipped as standard with power filters, harmonising the incoming voltage and protecting the inverter and compressor components from surges.


Specification

Product ENERGY MK2 SERIES 7.5 - 90 kW
Power kW
Free Air Delivery cfm
Max Pressure
Sound Level dB(A)
Weight
Approx. Dimensions (LxWxH)
Add to Enquiry
Product ENERGY MK2 7.5 - 7.5
Power kW 7.5
Free Air Delivery cfm 46
Max Pressure 7.5
Sound Level dB(A) 63
Weight 194
Approx. Dimensions (LxWxH) 940 x 770 x 1020
Add to Enquiry
Product ENERGY MK2 7.5 - 10
Power kW 7.5
Free Air Delivery cfm 39
Max Pressure 10
Sound Level dB(A) 63
Weight 194
Approx. Dimensions (LxWxH) 940 x 770 x 1020
Add to Enquiry
Product ENERGY MK2 16 - 7.5
Power kW 15
Free Air Delivery cfm 88
Max Pressure 7.5
Sound Level dB(A) 68
Weight 595
Approx. Dimensions (LxWxH) 1200 x 810 x 1180
Add to Enquiry
Product ENERGY MK2 16 - 10
Power kW 15
Free Air Delivery cfm 74
Max Pressure 10
Sound Level dB(A) 68
Weight 595
Approx. Dimensions (LxWxH) 1200 x 810 x 1180
Add to Enquiry
Product ENERGY MK2 18.5 - 7.5
Power kW 18.5
Free Air Delivery cfm 109
Max Pressure 7.5
Sound Level dB(A) 62
Weight 696
Approx. Dimensions (LxWxH) 1500 x 1000 x 1600
Add to Enquiry
Product ENERGY MK2 18.5 - 10
Power kW 18.5
Free Air Delivery cfm 92
Max Pressure 10
Sound Level dB(A) 62
Weight 696
Approx. Dimensions (LxWxH) 1500 x 1000 x 1600
Add to Enquiry
Product ENERGY MK2 22 - 7.5
Power kW 22
Free Air Delivery cfm 127
Max Pressure 7.5
Sound Level dB(A) 64
Weight 731
Approx. Dimensions (LxWxH) 1500 x 1000 x 1600
Add to Enquiry
Product ENERGY MK2 22 - 10
Power kW 22
Free Air Delivery cfm 106
Max Pressure 10
Sound Level dB(A) 62
Weight 731
Approx. Dimensions (LxWxH) 1500 x 1000 x 1600
Add to Enquiry
Product ENERGY MK2 22 - 13
Power kW 22
Free Air Delivery cfm 90
Max Pressure 13
Sound Level dB(A) 62
Weight 731
Approx. Dimensions (LxWxH) 1500 x 1000 x 1600
Add to Enquiry
Product ENERGY MK2 30 - 7.5
Power kW 30
Free Air Delivery cfm 171
Max Pressure 7.5
Sound Level dB(A) 68
Weight 1100
Approx. Dimensions (LxWxH) 1800 x 1160 x 1780
Add to Enquiry
Product ENERGY MK2 30 - 10
Power kW 30
Free Air Delivery cfm 152
Max Pressure 10
Sound Level dB(A) 68
Weight 1100
Approx. Dimensions (LxWxH) 1800 x 1160 x 1780
Add to Enquiry
Product ENERGY MK2 37 - 7.5
Power kW 37
Free Air Delivery cfm 233
Max Pressure 7.5
Sound Level dB(A) 70
Weight 1190
Approx. Dimensions (LxWxH) 1800 x 1160 x 1780
Add to Enquiry
Product ENERGY MK2 37 - 10
Power kW 37
Free Air Delivery cfm 191
Max Pressure 10
Sound Level dB(A) 69
Weight 1130
Approx. Dimensions (LxWxH) 1800 x 1160 x 1780
Add to Enquiry
Product ENERGY MK2 37 - 13
Power kW 37
Free Air Delivery cfm 160
Max Pressure 13
Sound Level dB(A) 67
Weight 1130
Approx. Dimensions (LxWxH) 1800 x 1160 x 1780
Add to Enquiry
Product ENERGY MK2 45 - 7.5
Power kW 45
Free Air Delivery cfm 290
Max Pressure 7.5
Sound Level dB(A) 72
Weight 1326
Approx. Dimensions (LxWxH) 1920 x 1420 x 1880
Add to Enquiry
Product ENERGY MK2 45 - 10
Power kW 45
Free Air Delivery cfm 237
Max Pressure 10
Sound Level dB(A) 72
Weight 1326
Approx. Dimensions (LxWxH) 1920 x 1420 x 1880
Add to Enquiry
Product ENERGY MK2 55 - 7.5
Power kW 55
Free Air Delivery cfm 357
Max Pressure 7.5
Sound Level dB(A) 72
Weight 1383
Approx. Dimensions (LxWxH) 1920 x 1420 x 1880
Add to Enquiry
Product ENERGY MK2 55 - 10
Power kW 55
Free Air Delivery cfm 293
Max Pressure 10
Sound Level dB(A) 72
Weight 1383
Approx. Dimensions (LxWxH) 1920 x 1420 x 1880
Add to Enquiry
Product ENERGY MK2 55 -13
Power kW 55
Free Air Delivery cfm 230
Max Pressure 13
Sound Level dB(A) 72
Weight 1383
Approx. Dimensions (LxWxH) 1920 x 1420 x 1880
Add to Enquiry
Product ENERGY MK2 75 - 7.5
Power kW 75
Free Air Delivery cfm 445
Max Pressure 7.5
Sound Level dB(A) 69
Weight 3000
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 75 - 10
Power kW 75
Free Air Delivery cfm 371
Max Pressure 10
Sound Level dB(A) 69
Weight 3000
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 75 -13
Power kW 75
Free Air Delivery cfm 307
Max Pressure 13
Sound Level dB(A) 69
Weight 3000
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 76 - 7.5
Power kW 75
Free Air Delivery cfm 477
Max Pressure 7.5
Sound Level dB(A) 67
Weight 3035
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 76 - 10
Power kW 75
Free Air Delivery cfm 413
Max Pressure 10
Sound Level dB(A) 66
Weight 3035
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 76 - 13
Power kW 75
Free Air Delivery cfm 342
Max Pressure 13
Sound Level dB(A) 67
Weight 3035
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 90 - 7.5
Power kW 90
Free Air Delivery cfm 562
Max Pressure 7.5
Sound Level dB(A) 68
Weight 3110
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 90 - 10
Power kW 90
Free Air Delivery cfm 473
Max Pressure 10
Sound Level dB(A) 70
Weight 3110
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY MK2 90 - 13
Power kW 90
Free Air Delivery cfm 367
Max Pressure 13
Sound Level dB(A) 66
Weight 3110
Approx. Dimensions (LxWxH) 2560 x 1660 x 2230
Add to Enquiry
Product ENERGY SERIES 110 - 250 kW
Power kW
Free Air Delivery cfm
Max Pressure
Sound Level dB(A)
Weight
Approx. Dimensions (LxWxH)
Add to Enquiry
Product ENERGY 110 - 7.5
Power kW 110
Free Air Delivery cfm 653
Max Pressure 7.5
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 110 - 10
Power kW 110
Free Air Delivery cfm 561
Max Pressure 10
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 110 - 13
Power kW 110
Free Air Delivery cfm 477
Max Pressure 13
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 132 - 7.5
Power kW 132
Free Air Delivery cfm 784
Max Pressure 7.5
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 132 - 10
Power kW 132
Free Air Delivery cfm 671
Max Pressure 10
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 132 - 13
Power kW 132
Free Air Delivery cfm 569
Max Pressure 13
Sound Level dB(A) 75
Weight 2860
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 150 - 7.5
Power kW 160
Free Air Delivery cfm 904
Max Pressure 7.5
Sound Level dB(A) 74
Weight 3350
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 150 - 10
Power kW 160
Free Air Delivery cfm 809
Max Pressure 10
Sound Level dB(A) 74
Weight 3350
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 150 - 13
Power kW 160
Free Air Delivery cfm 685
Max Pressure 13
Sound Level dB(A) 74
Weight 3350
Approx. Dimensions (LxWxH) 2900 x 1550 x 2160
Add to Enquiry
Product ENERGY 200 - 7.5
Power kW 200
Free Air Delivery cfm 1183
Max Pressure 7.5
Sound Level dB(A) 76
Weight 4670
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product ENERGY 200 - 10
Power kW 200
Free Air Delivery cfm 1006
Max Pressure 10
Sound Level dB(A) 76
Weight 4670
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product ENERGY 200 - 13
Power kW 200
Free Air Delivery cfm 869
Max Pressure 13
Sound Level dB(A) 76
Weight 4670
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product ENERGY 250 - 7.5
Power kW 250
Free Air Delivery cfm 1487
Max Pressure 7.5
Sound Level dB(A) 76
Weight 4830
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product ENERGY 250 - 10
Power kW 250
Free Air Delivery cfm 1261
Max Pressure 10
Sound Level dB(A) 76
Weight 4830
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product ENERGY 250 - 13
Power kW 250
Free Air Delivery cfm 1081
Max Pressure 13
Sound Level dB(A) 76
Weight 4830
Approx. Dimensions (LxWxH) 3300 x 2100 x 2160
Add to Enquiry
Product Power kW Free Air Delivery cfm Max Pressure Sound Level dB(A) Weight Approx. Dimensions (LxWxH) Add to Enquiry
ENERGY MK2 SERIES 7.5 - 90 kW
ENERGY MK2 7.5 - 7.5 7.5 46 7.5 63 194 940 x 770 x 1020
ENERGY MK2 7.5 - 10 7.5 39 10 63 194 940 x 770 x 1020
ENERGY MK2 16 - 7.5 15 88 7.5 68 595 1200 x 810 x 1180
ENERGY MK2 16 - 10 15 74 10 68 595 1200 x 810 x 1180
ENERGY MK2 18.5 - 7.5 18.5 109 7.5 62 696 1500 x 1000 x 1600
ENERGY MK2 18.5 - 10 18.5 92 10 62 696 1500 x 1000 x 1600
ENERGY MK2 22 - 7.5 22 127 7.5 64 731 1500 x 1000 x 1600
ENERGY MK2 22 - 10 22 106 10 62 731 1500 x 1000 x 1600
ENERGY MK2 22 - 13 22 90 13 62 731 1500 x 1000 x 1600
ENERGY MK2 30 - 7.5 30 171 7.5 68 1100 1800 x 1160 x 1780
ENERGY MK2 30 - 10 30 152 10 68 1100 1800 x 1160 x 1780
ENERGY MK2 37 - 7.5 37 233 7.5 70 1190 1800 x 1160 x 1780
ENERGY MK2 37 - 10 37 191 10 69 1130 1800 x 1160 x 1780
ENERGY MK2 37 - 13 37 160 13 67 1130 1800 x 1160 x 1780
ENERGY MK2 45 - 7.5 45 290 7.5 72 1326 1920 x 1420 x 1880
ENERGY MK2 45 - 10 45 237 10 72 1326 1920 x 1420 x 1880
ENERGY MK2 55 - 7.5 55 357 7.5 72 1383 1920 x 1420 x 1880
ENERGY MK2 55 - 10 55 293 10 72 1383 1920 x 1420 x 1880
ENERGY MK2 55 -13 55 230 13 72 1383 1920 x 1420 x 1880
ENERGY MK2 75 - 7.5 75 445 7.5 69 3000 2560 x 1660 x 2230
ENERGY MK2 75 - 10 75 371 10 69 3000 2560 x 1660 x 2230
ENERGY MK2 75 -13 75 307 13 69 3000 2560 x 1660 x 2230
ENERGY MK2 76 - 7.5 75 477 7.5 67 3035 2560 x 1660 x 2230
ENERGY MK2 76 - 10 75 413 10 66 3035 2560 x 1660 x 2230
ENERGY MK2 76 - 13 75 342 13 67 3035 2560 x 1660 x 2230
ENERGY MK2 90 - 7.5 90 562 7.5 68 3110 2560 x 1660 x 2230
ENERGY MK2 90 - 10 90 473 10 70 3110 2560 x 1660 x 2230
ENERGY MK2 90 - 13 90 367 13 66 3110 2560 x 1660 x 2230
ENERGY SERIES 110 - 250 kW
ENERGY 110 - 7.5 110 653 7.5 75 2860 2900 x 1550 x 2160
ENERGY 110 - 10 110 561 10 75 2860 2900 x 1550 x 2160
ENERGY 110 - 13 110 477 13 75 2860 2900 x 1550 x 2160
ENERGY 132 - 7.5 132 784 7.5 75 2860 2900 x 1550 x 2160
ENERGY 132 - 10 132 671 10 75 2860 2900 x 1550 x 2160
ENERGY 132 - 13 132 569 13 75 2860 2900 x 1550 x 2160
ENERGY 150 - 7.5 160 904 7.5 74 3350 2900 x 1550 x 2160
ENERGY 150 - 10 160 809 10 74 3350 2900 x 1550 x 2160
ENERGY 150 - 13 160 685 13 74 3350 2900 x 1550 x 2160
ENERGY 200 - 7.5 200 1183 7.5 76 4670 3300 x 2100 x 2160
ENERGY 200 - 10 200 1006 10 76 4670 3300 x 2100 x 2160
ENERGY 200 - 13 200 869 13 76 4670 3300 x 2100 x 2160
ENERGY 250 - 7.5 250 1487 7.5 76 4830 3300 x 2100 x 2160
ENERGY 250 - 10 250 1261 10 76 4830 3300 x 2100 x 2160
ENERGY 250 - 13 250 1081 13 76 4830 3300 x 2100 x 2160
