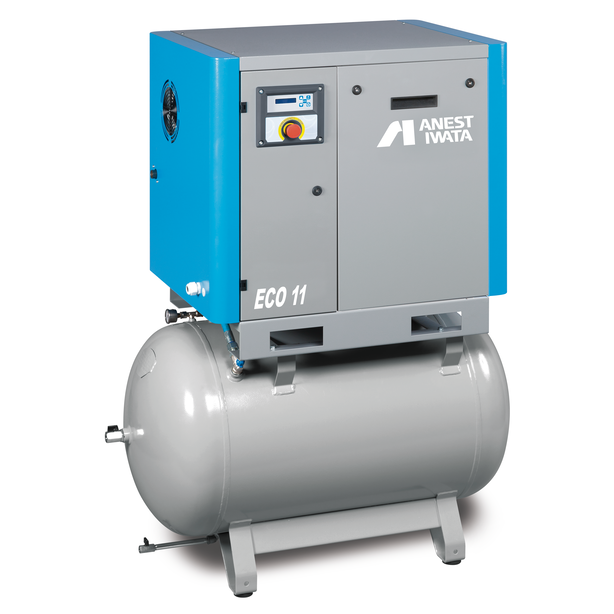

Belt Driven - Eco Series

Features

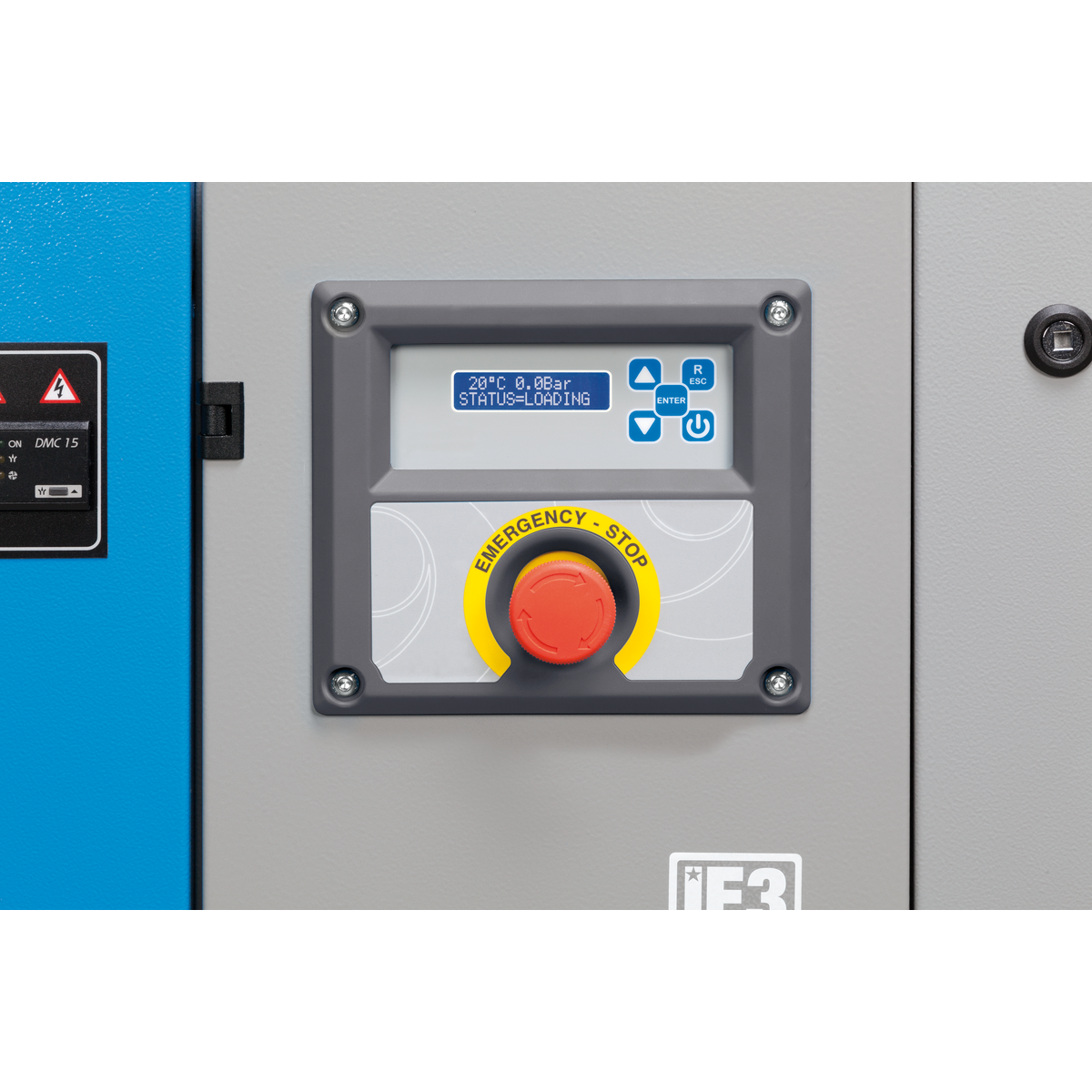

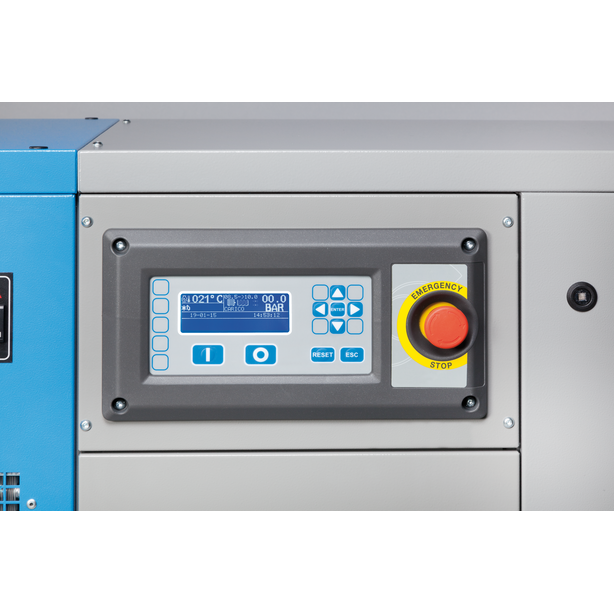

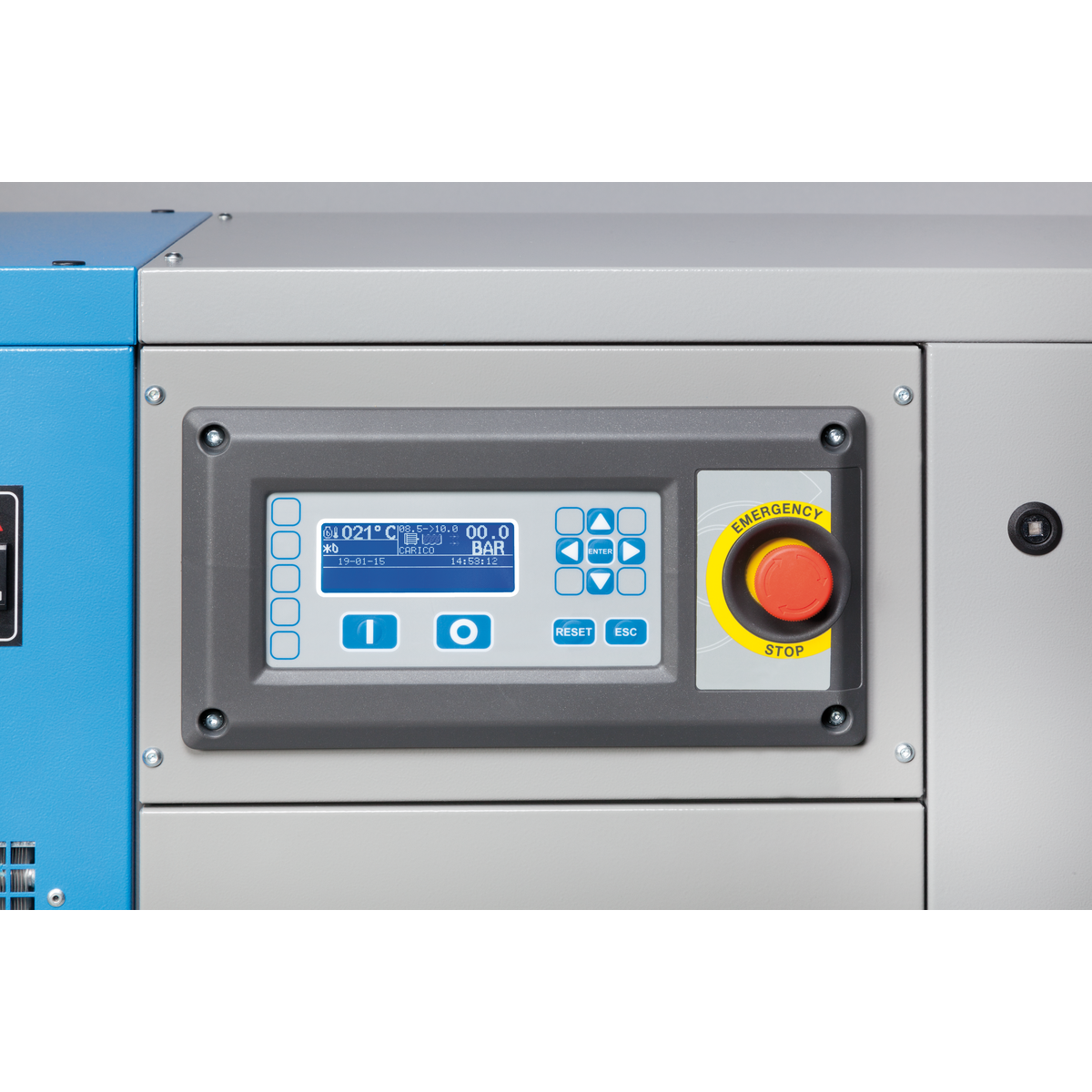

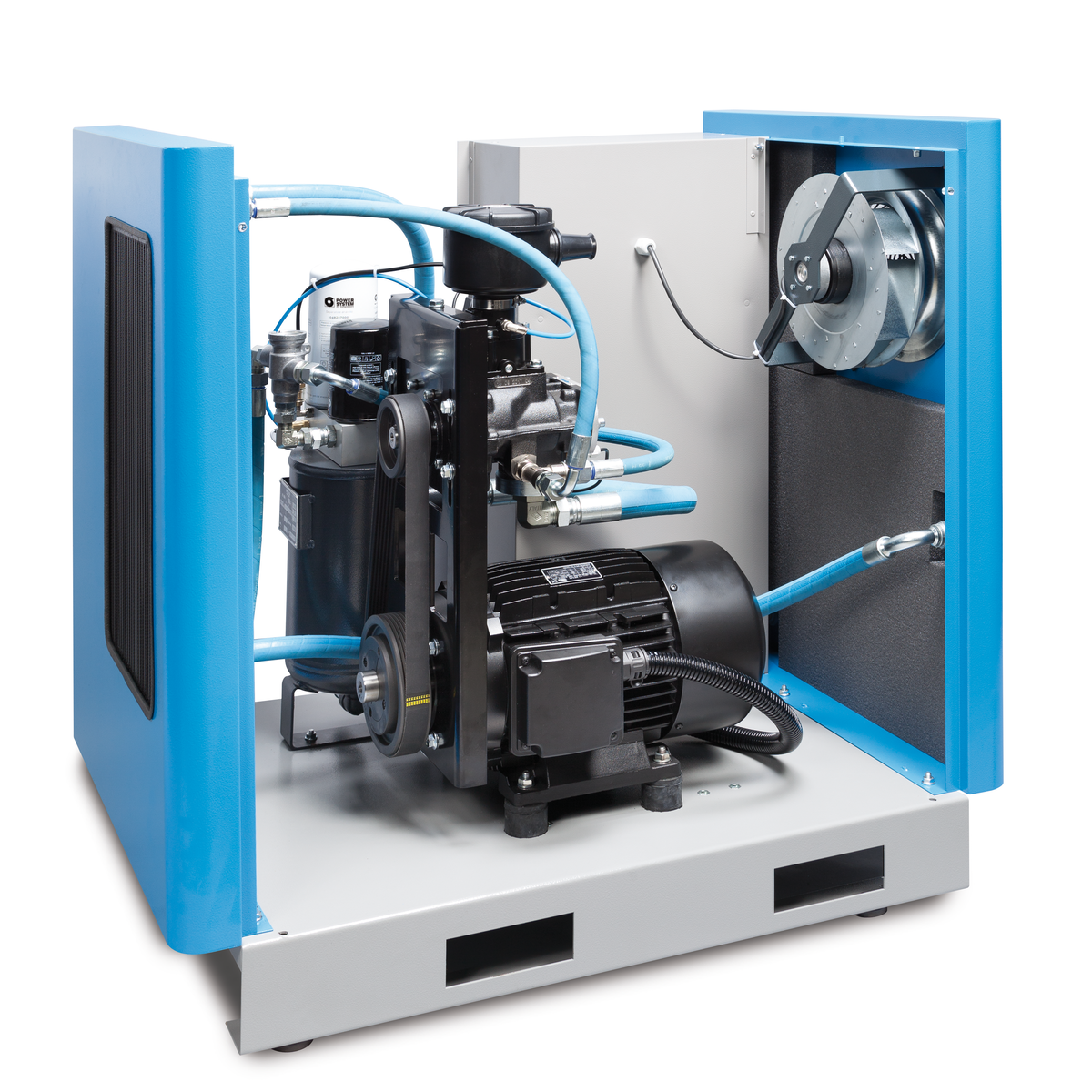

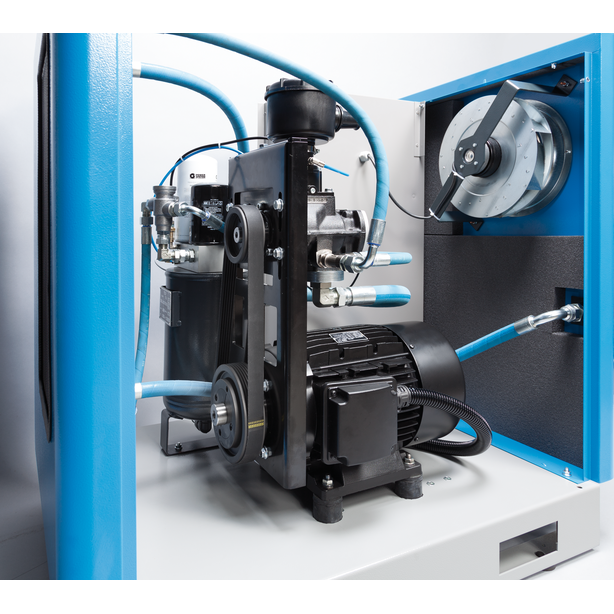

Compact, heavy duty, quiet and highly reliable belt driven rotary screw compressors series, to satisfy all the requirements. The ECO series comprises a comprehensive range of premium quality rotary screw air compressors from 4 kW to 15 kW. Each model is constructed to the highest standard using the best quality components in order to ensure a long life and total reliability. The design of the ECO series benefits from years of experience in the production of innovative high quality air compressors where attention to detail and quality are at the highest level. The advanced controllers fitted to the ECO range have been specifically developed to guarantee optimum monitoring and regulation of the compressor’s operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.



Specification

Product ECO 4.0-08-270
Tank Size 270
Power kW 4
Free Air Delivery cfm 20.5
Max Pressure 8
Sound Level dB(A) 60
Connection G 1/2"
Weight 246
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 4.0-10-270
Tank Size 270
Power kW 4
Free Air Delivery cfm 17.1
Max Pressure 10
Sound Level dB(A) 60
Connection G 1/2"
Weight 246
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 5.5-08-270
Tank Size 270
Power kW 5.5
Free Air Delivery cfm 25.4
Max Pressure 8
Sound Level dB(A) 64
Connection G 1/2"
Weight 248
Approx. Dimensions (LxWxH) 1200 x 850 x 1540
Add to Enquiry
Product ECO 5.5-10-270
Tank Size 270
Power kW 5.5
Free Air Delivery cfm 22.9
Max Pressure 10
Sound Level dB(A) 64
Connection G 1/2"
Weight 248
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 7.5-08-270
Tank Size 270
Power kW 7.5
Free Air Delivery cfm 44.1
Max Pressure 8
Sound Level dB(A) 66
Connection G 1/2"
Weight 262
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 7.5-10-270
Tank Size 270
Power kW 7.5
Free Air Delivery cfm 35.3
Max Pressure 10
Sound Level dB(A) 66
Connection G 1/2"
Weight 262
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 7.5-13-270
Tank Size 270
Power kW 7.5
Free Air Delivery cfm 26.5
Max Pressure 13
Sound Level dB(A) 66
Connection G 1/2"
Weight 292
Approx. Dimensions (LxWxH) 1200 x 650 x 1540
Add to Enquiry
Product ECO 11-08-270
Tank Size 270
Power kW 11
Free Air Delivery cfm 58.2
Max Pressure 8
Sound Level dB(A) 69
Connection G 3/4"
Weight 300
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product ECO 11-10-270
Tank Size 270
Power kW 11
Free Air Delivery cfm 53
Max Pressure 10
Sound Level dB(A) 69
Connection G 3/4"
Weight 300
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product ECO 11-13-270
Tank Size 270
Power kW 11
Free Air Delivery cfm 40.6
Max Pressure 13
Sound Level dB(A) 69
Connection G 3/4"
Weight 328
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product ECO 15-08-270
Tank Size 270
Power kW 15
Free Air Delivery cfm 75.9
Max Pressure 8
Sound Level dB(A) 70
Connection G 3/4"
Weight 310
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product ECO 15-10-270
Tank Size 270
Power kW 15
Free Air Delivery cfm 65.3
Max Pressure 10
Sound Level dB(A) 70
Connection G 3/4"
Weight 310
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product ECO 15-13-270
Tank Size 270
Power kW 15
Free Air Delivery cfm 54.7
Max Pressure 13
Sound Level dB(A) 70
Connection G 3/4"
Weight 338
Approx. Dimensions (LxWxH) 1550 x 700 x 1530
Add to Enquiry
Product Tank Size Power kW Free Air Delivery cfm Max Pressure Sound Level dB(A) Connection G Weight Approx. Dimensions (LxWxH) Add to Enquiry
ECO 4.0-08-270 270 4 20.5 8 60 1/2" 246 1200 x 650 x 1540
ECO 4.0-10-270 270 4 17.1 10 60 1/2" 246 1200 x 650 x 1540
ECO 5.5-08-270 270 5.5 25.4 8 64 1/2" 248 1200 x 850 x 1540
ECO 5.5-10-270 270 5.5 22.9 10 64 1/2" 248 1200 x 650 x 1540
ECO 7.5-08-270 270 7.5 44.1 8 66 1/2" 262 1200 x 650 x 1540
ECO 7.5-10-270 270 7.5 35.3 10 66 1/2" 262 1200 x 650 x 1540
ECO 7.5-13-270 270 7.5 26.5 13 66 1/2" 292 1200 x 650 x 1540
ECO 11-08-270 270 11 58.2 8 69 3/4" 300 1550 x 700 x 1530
ECO 11-10-270 270 11 53 10 69 3/4" 300 1550 x 700 x 1530
ECO 11-13-270 270 11 40.6 13 69 3/4" 328 1550 x 700 x 1530
ECO 15-08-270 270 15 75.9 8 70 3/4" 310 1550 x 700 x 1530
ECO 15-10-270 270 15 65.3 10 70 3/4" 310 1550 x 700 x 1530
ECO 15-13-270 270 15 54.7 13 70 3/4" 338 1550 x 700 x 1530
