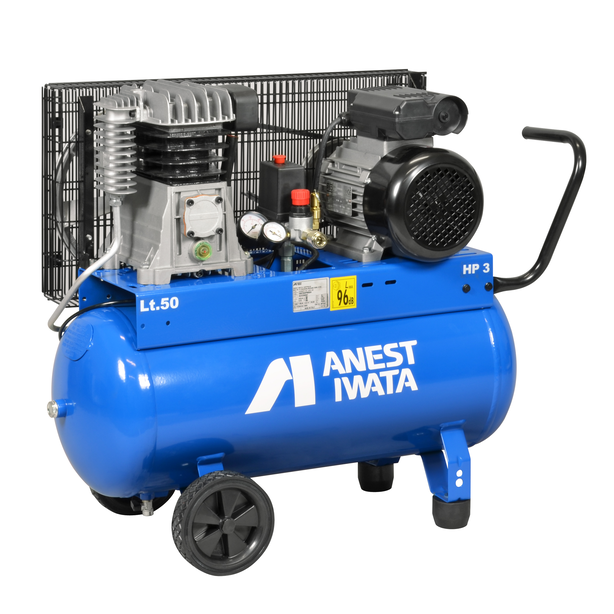

Lubricated Reciprocation Compressor Single Phase (240v)

Features

Heavy-Duty Cast-Iron Pump Unit
Slow RPM’s
Low Noise
European Built
Quality Components
Belt Drive
Heavy Duty Pressure Switch
Positive Non-Return Valve Unloader

Amps Required:

NB20C/50 - 10amps

NB20C/90 - 10amps

NB30C/50 - 15amps

NB30C/90 - 15 amps

Contact us to book a free on-site quote:

Main: 1300 888 097

VIC: 0410 621 284

NSW: 0423 585 817

Downloads

Anest Iwata Pistons Flyer.pdf

Specification

Product	NB20C/50
Type	Lubricated
Motor	1.5
CFM	9
Air Delivery	254
Approx. Dimensions (LxWxH)	820 x 390 x 750
Weight	51
Phase	single
Add to Enquiry

Product	NBC20C/90
Type	Lubricated
Motor	1.5
CFM	9
Air Delivery	225
Approx. Dimensions (LxWxH)	1030 X 440 X 820
Weight	55
Phase	single
Add to Enquiry

Product	NB30C/50
Type	Lubricated
Motor	2.2
CFM	11.6
Air Delivery	330
Approx. Dimensions (LxWxH)	820 x 390 x 750
Weight	56
Phase	single
Add to Enquiry

Product	NB30C/90
Type	Lubricated
Motor	2.2
CFM	13.7
Air Delivery	390
Approx. Dimensions (LxWxH)	1030 x 440 x 920
Weight	73
Phase	single
Add to Enquiry

Product	Type	Motor	CFM	Air Delivery	Approx. Dimensions (LxWxH)	Weight	Phase	Add to Enquiry
NB20C/50	Lubricated	1.5	9	254	820 x 390 x 750	51	single
NBC20C/90	Lubricated	1.5	9	225	1030 X 440 X 820	55	single
NB30C/50	Lubricated	2.2	11.6	330	820 x 390 x 750	56	single
NB30C/90	Lubricated	2.2	13.7	390	1030 x 440 x 920	73	single
